- -30,75 €
Dokio 100 W 160 W 200 W faltbares Solarpanel China 10 A/20 A 12 V Controller faltbares Solarpanel Zelle/Systemladegerät
113,74 €
82,99 €
Sparen Sie 30,75 €
Bruttopreis
Übersicht
Lieferung ist nicht unterstützt in den folgenden bereichen:
1. spanisch insel region. Die zip code beginnt mit "35" und "38".
2. Remote städten in Brasilien. Für beispiel, Rio de Janeiro, BIN, CE,PB,PI,BA
Purchase Notes
Our products have been upgraded,
the new glass folding 100W panel size: 90.5*63.5cm
the new glass folding 150W panel size: 90*91cm
the new glass folding 200W panel size: 132*76cm

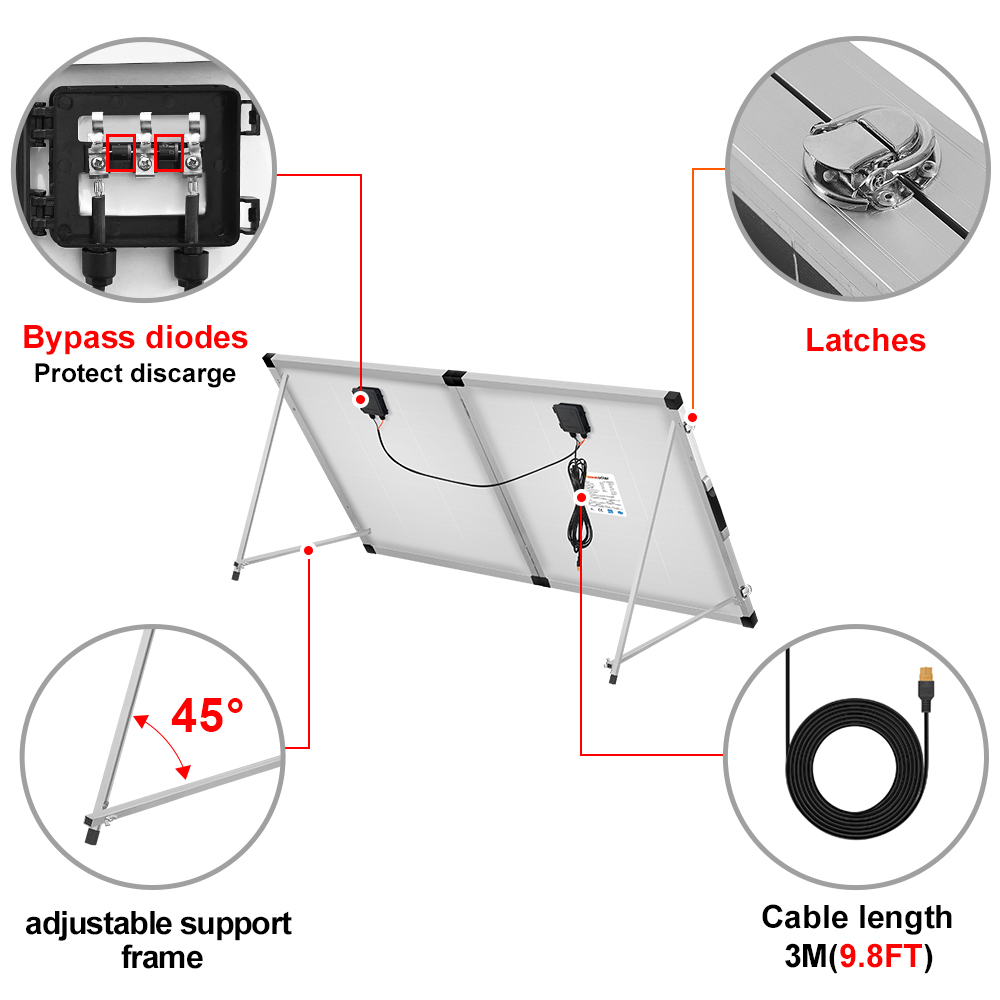

Due to product upgrades and production batch issues, the appearance and size of the product you receive may vary. The four corners of this solar panel are equipped with black corner guards to protect the solar panel. If the corner protector is damaged, you can contact us to replace the corner protector for free. But this does not affect the work of the solar panel. We do not accept compensation. Please understand that. Both 100W/150W and 200W solar panels come with a black DOKIO bag. For storing solar panels. Please avoid lifting heavy objects.
Model:FSP-100M
Material:Monocrystalline silicon
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):5.81A
Maximum System Voltage: DC1000V
Maximum Series Fuse:9A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Weight: 6.9KG
Foldable Dimension:
635*450*50(mm)
Expansion Dimension:
905*635(mm)/36*25(in)
Package List:
100W solar panel (without cable)*1
3M Alligator clip cable*1
10A PWM controller *1
DOKIO bag*1
Model:FSP-160
Material:Monocrystalline silicon
Maximum Power(Pmax): 160W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):8.89A
Open-Circuit Voltage (Voc): 21.6V
Short-Circuit Current (Isc):9.14A
Maximum System Voltage: DC1000V
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Weight: 11.4KG
Dimensions:900*910mm/35.4*35.8 in
Package List:
160W solar panel (without cable)*1
3M Alligator clip cable*1
10A PWM controller *1
DOKIO bag*1

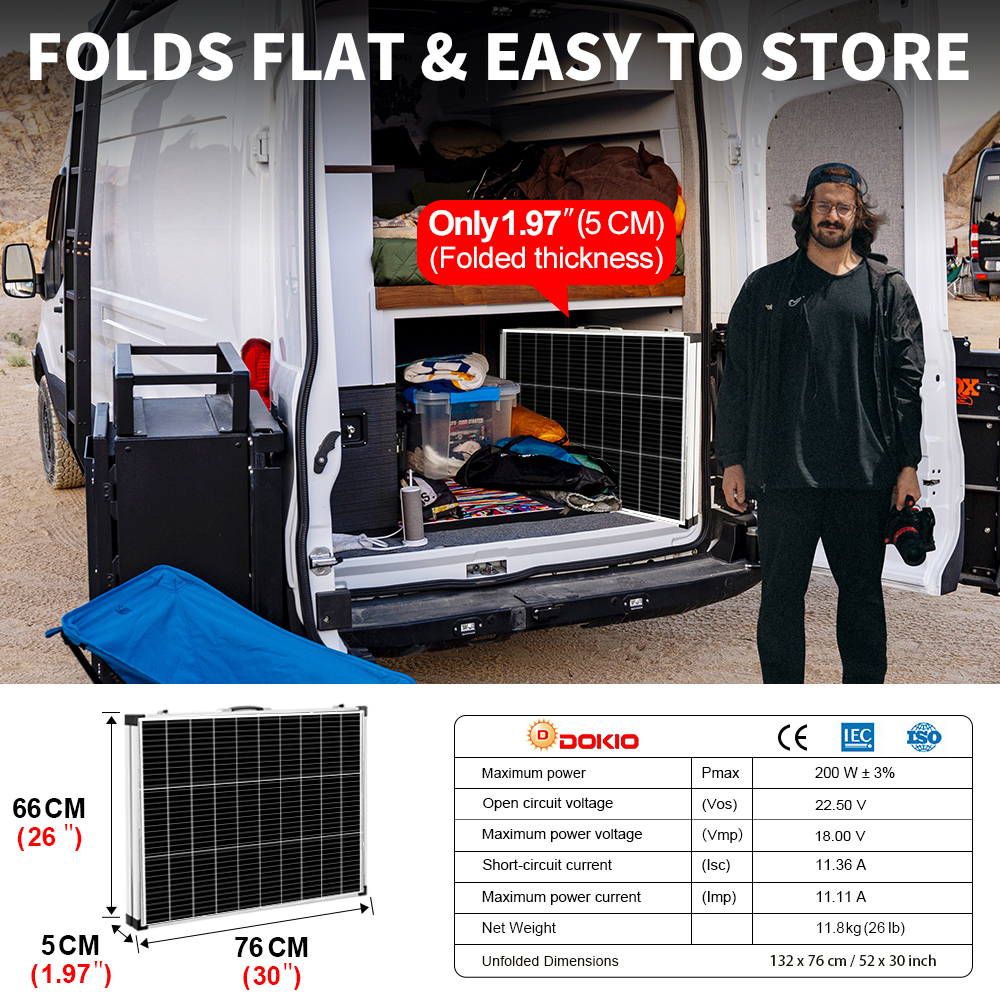

Model:FSP-200M
Material:Monocrystalline silicon
Maximum Power(Pmax):200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.11A
Open-Circuit Voltage (Voc):22.50V
Short-Circuit Current (Isc):11.36A
Maximum System Voltage: DC1000V
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Weight: 11.8kg
Dimensions:1320*760mm/52*30 in
Package List:
200W solar panel (without cable)*1
3M Alligator clip cable*1
20A PWM controller *1
DOKIO bag*1
PS
The gray controller is suitable for 12V lead-acid,lithium ions and LiFePO4 battries.
No need to connect battery to start.
New Size
common features
32794076294
Technische Daten
- Material
- Monokristallines Silikon
- Größe
- 90.5*63.5*2.5cm
- Hign-betroffene Chemikalie
- Keiner
- ist individuell
- Ja
- Max. Energie
- 200W
- Zahl der Zellen
- 36
